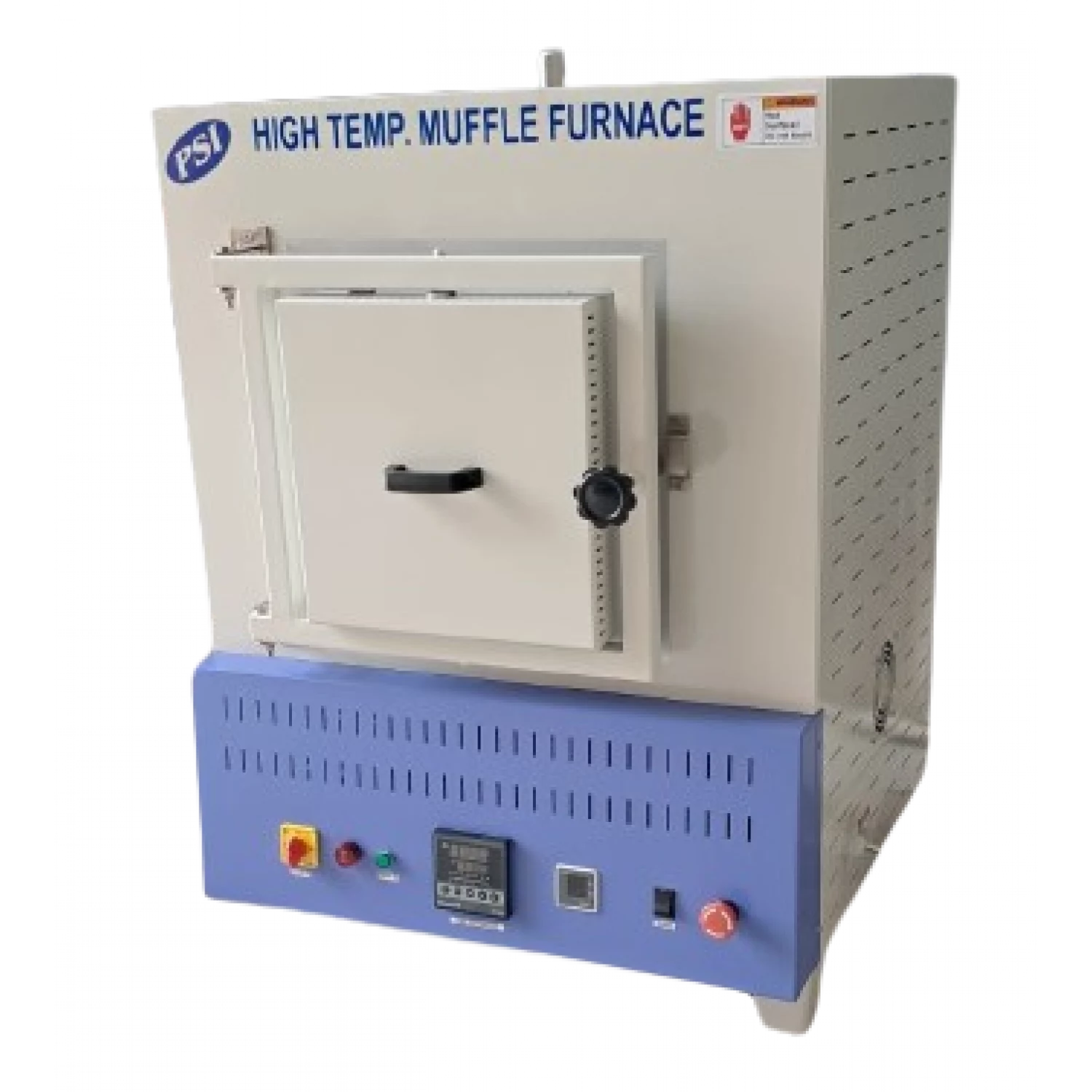

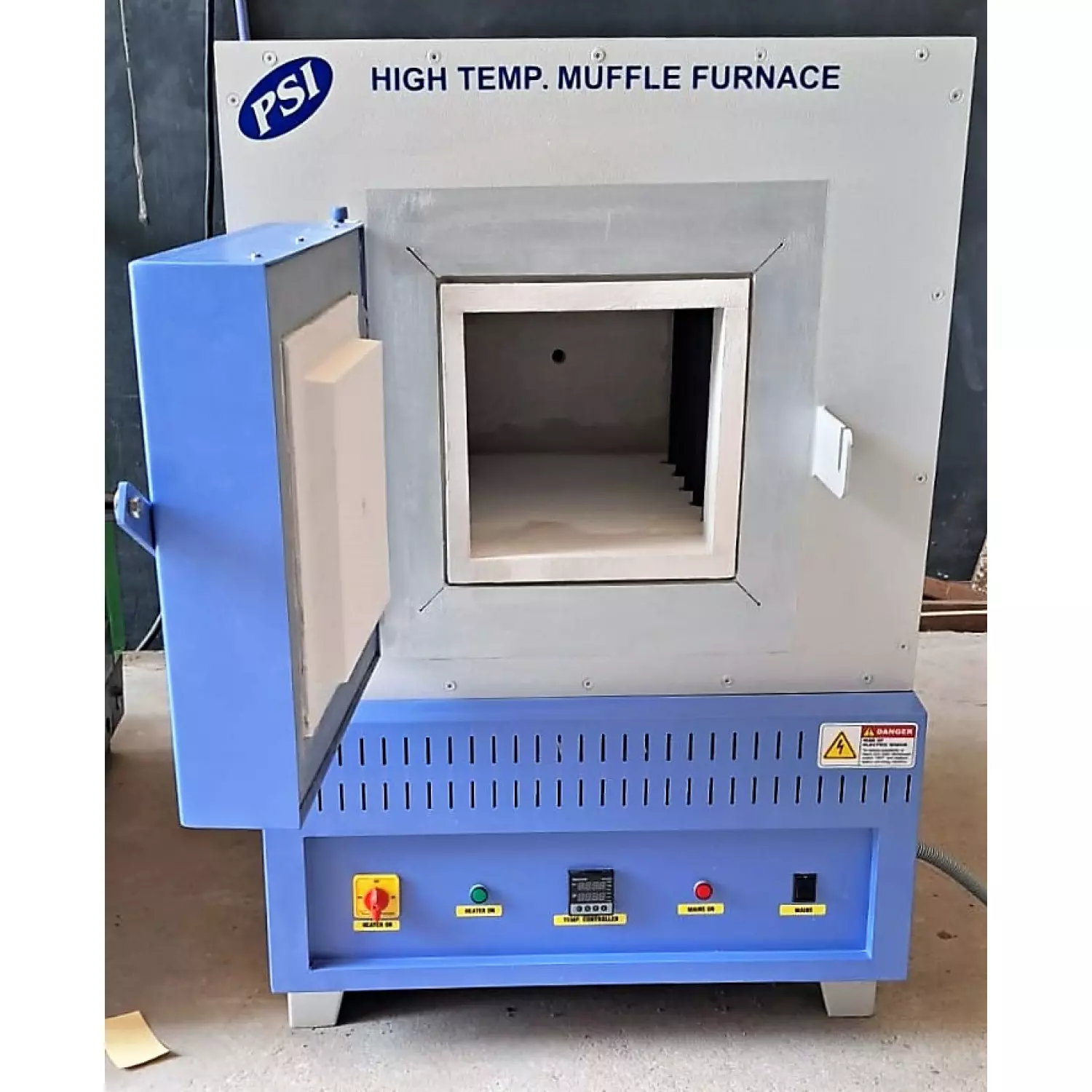

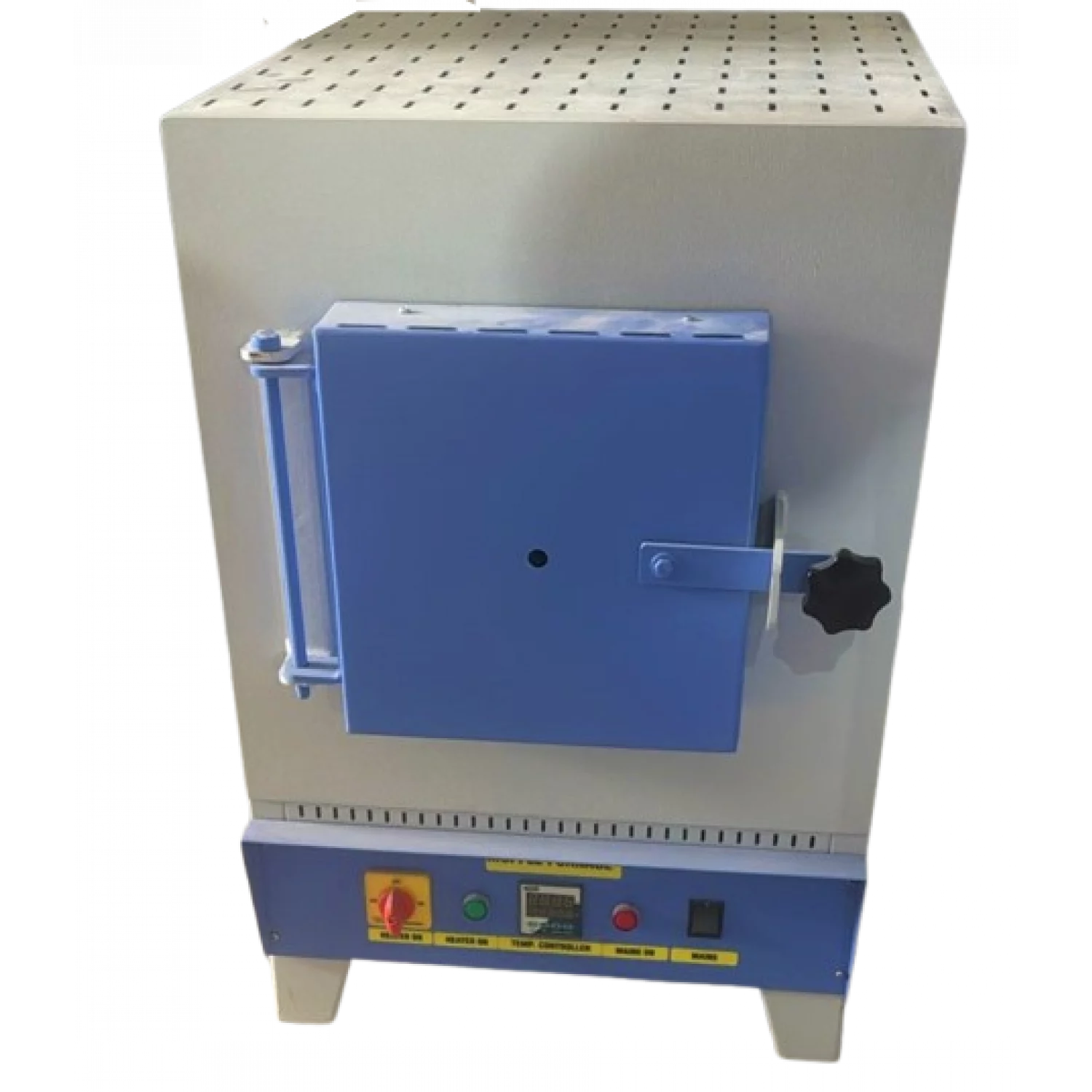

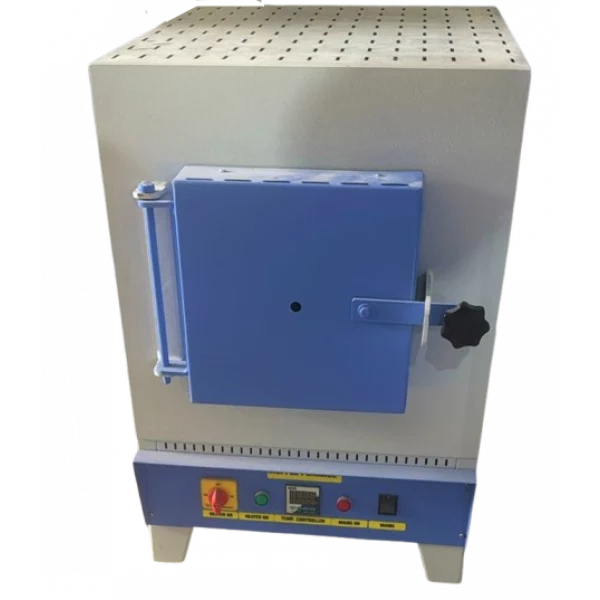

High Temp Muffle Furnace

The High Temperature Muffle Furnace from Patel Scientific Instruments Pvt. Ltd. is a sturdy and dependable laboratory furnace, perfect for high-temperature tasks like ashing, annealing, sintering, heat treatment, and material testing. Built to provide consistent temperature distribution and outstanding thermal stability, it’s an excellent choice for research institutions, industrial labs, metallurgy, ceramics, and material science applications.

Thanks to its robust construction and sophisticated temperature control system, this furnace guarantees efficient and safe operation, even in the toughest conditions.

Technical Specification:

• Maximum operating temperature. 500°C to 1350°C.
• Silicon Carbide Muffle for Energy Efficient and better uniformity.
• Tailor-made box size as per the customer's requirement
• Silicon carbide heating elements
• Microprocessor Digital PID Controller.
• External Chamber Construction: MS with/ Powder Coating / 304 Grade Stainless Steel (Optional)
• Internal Chamber Construction: Ceramic Board & Bricks Refractory Chamber as per Temp. Requirement
• Murugappa High Temp. board Insulation
• 1°C accuracy at dwell temp
• Suitable for nanotechnology applications
• Door limit switch for turning off the heating system while the door is open. (Optional)
• Indigenous thyrist or SSR controller
• Exhaust air outlet at the rear wall of the furnace.
• Solid-state relays provide low-noise operation.
• Safe and trouble-free performance

• 220/240 V Single Ph or 400/440 V Three Ph, 50 Hz AC.
