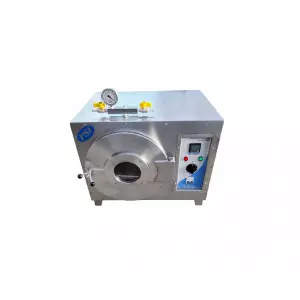

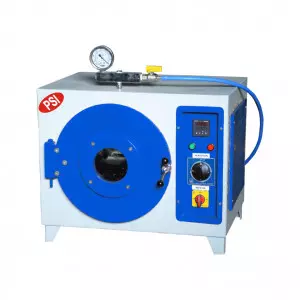

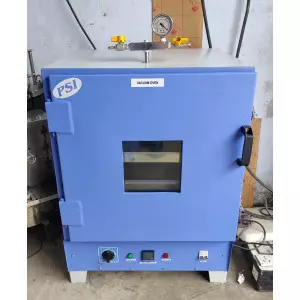

Vacuum Oven

The Vacuum Oven from Patel Scientific Instruments Pvt. Ltd. is specially designed for drying, curing, and heat treatment of heat-sensitive, hygroscopic, or oxidizable materials in a controlled vacuum environment. By reducing the atmospheric pressure inside the chamber, the vacuum oven lowers the boiling point of liquids, enabling efficient drying at lower temperatures, which protects delicate samples from thermal degradation.

Ideal for pharmaceutical, chemical, electronics, and research laboratories, this oven ensures uniform heat distribution and precise control over drying cycles for optimal results.

Construction:

• The unit is double walled with outer made of S. S. sheet and inner made of heavy gauge S.S. Sheet.
• Scientifically designed to provide Excellent Vacuum & Temp. Performance.
• High Reliability & Low Leakage Rate.
• Accuracy: + 1°C
• Resolutions: 0.1°C
• 0 To 30” / 0 to 760mm of Hg Vacuum.
• Vacuum gauge & cock provided.
• 3 heat switch / Energy regulator for precise control.
• Long lasting molded Silicon gasket.
• Gap between the two walls is duly filled with high grade glass wool in order to avoid thermal loss.
• Temperature range from ambient to 150°C is controlled by Digital Temperature Controller with an accuracy of 1°C, and the unit is also capable of withstanding a high vacuum.
• Microprocessor Auto Tune PID Controller.
• The Unit is provided with vacuum gauge, see through transparent window of toughened glass and one shelf etc. to work on 220/230 Volts A.C. supply.
• Client has to arrange vacuum pump on his own or can order optionally.

Documentations Provided

• IQ OQ PQ
• Calibration Certificate
• User Manual of Instrument
