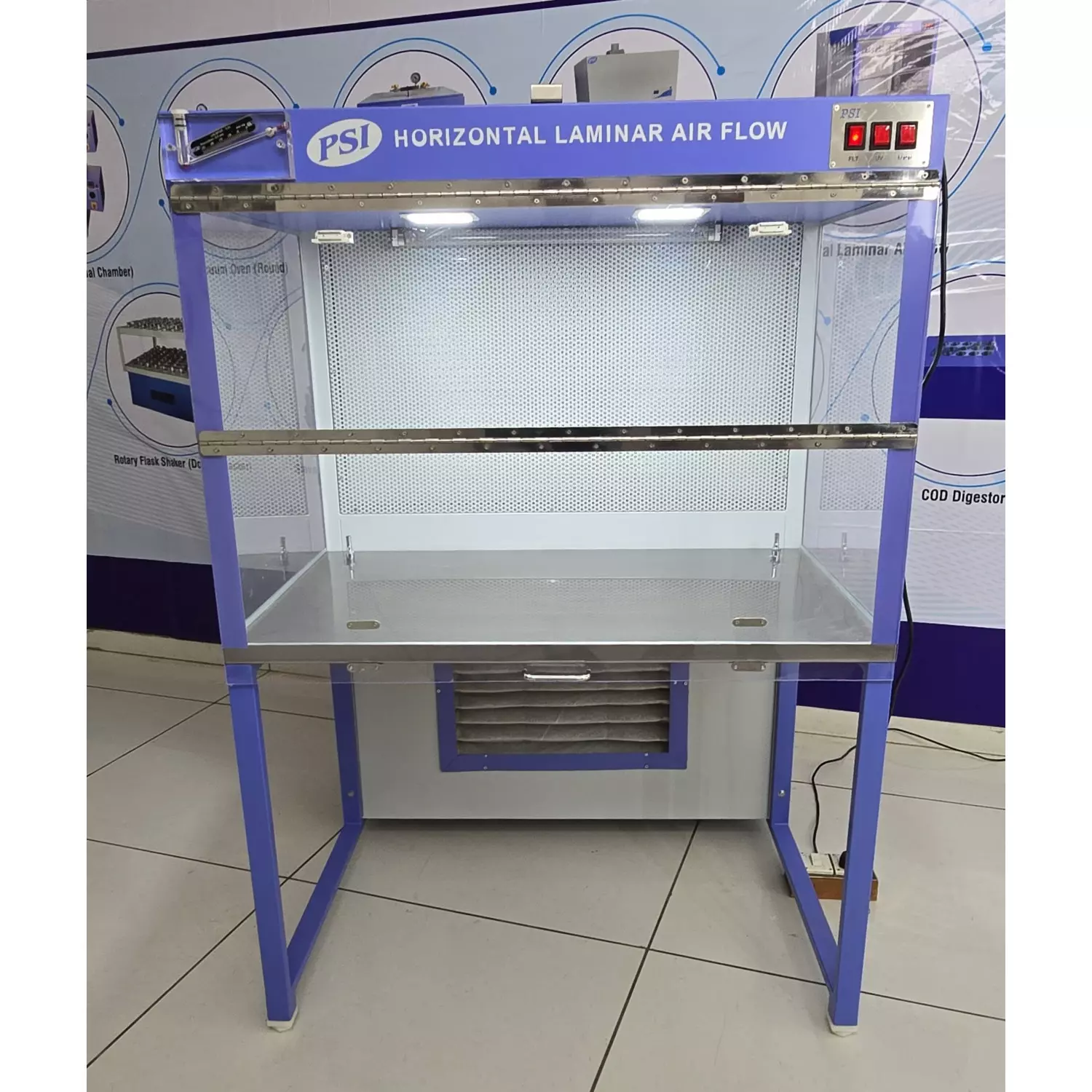

Horizontal Laminar Air Flow

The Horizontal Laminar Air Flow Cabinet from Patel Scientific Instruments Pvt. Ltd. is an incredibly efficient workstation crafted to ensure a sterile and particle-free environment. It's perfect for tasks that demand strict contamination control, like microbiological research, tissue culture, pharmaceutical procedures, electronics assembly, and quality control testing.

By channeling HEPA-filtered air horizontally across the work surface, this cabinet establishes a steady laminar airflow that safeguards sensitive samples and processes from airborne contaminants.

Salient Features & Construction:

• Low Cost, Low Noise.
• User Friendly Ergonomic Design.
• Controlled Environment Particulate Free Product Protection.
• Exterior surfaces are covered with Stainless Steel (SS-304).
• Working table is made of Stainless Steel Sheet (SS-304 grade).
• All interior surfaces are epoxy painted filter seat is carefully formed, installed and checked for leakage.
• Side panels & front doors are made of 6 mm thick acrylic transparent plexi glass.
• The highly efficient HEPA filter maintains the optimum cleanliness and purity.
• The pre-filter fitted extends the life of HEPA filter drastically. Air drawn through pre-filter is made to pass through highly effective HEPA (High Efficiency Particular Air) filters having efficiency rating as high as 99.99% with cold DOP and 99.97% with hot DOP, thus retaining all air-borne particles of size 0.3 micron and larger.
• Working area is illuminated by fluorescent lighting fitted to the unit.
• The blower and motor assembly is statically and dynamically balanced of 1/5 H.P. capacity operates with minimum noise level.
• Height of the working table provides comfortable "SIT DOWN" working position for the operator.
• Supplied complete with S.S. Table Top, Transparent front door, Static Pressure Manometer. Built in U.V. Germicidal Light and Cock for gas, air or vacuum line, HEPA filters and pre-filter.
• Supplied complete with cord & plug to work on Single Phase 220 / 230 volts A.C. supply.

Documentations Provided

• IQ OQ PQ
• Calibration Certificate
• User Manual of Instrument
