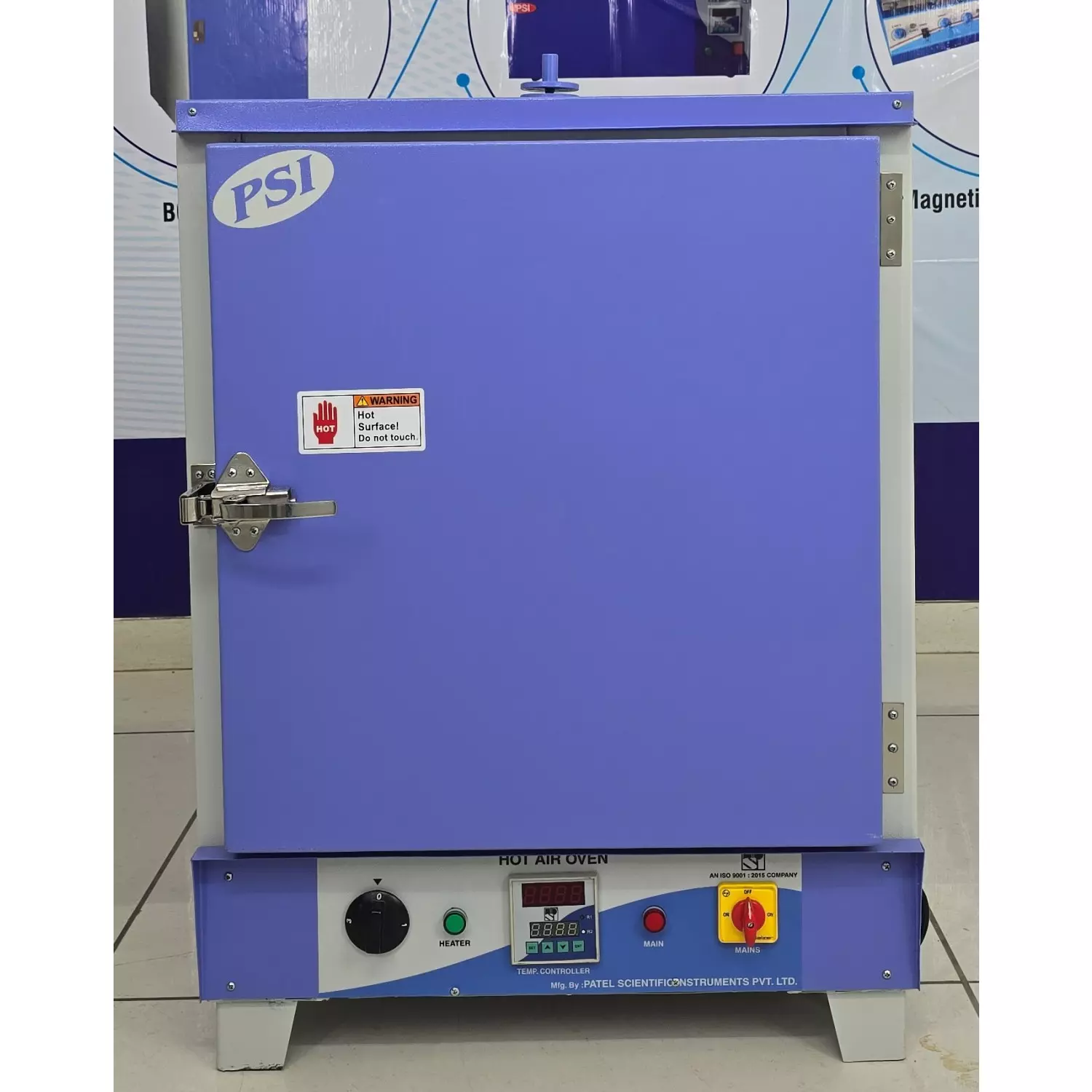

Hot Air Oven

AvailabilityIn Stock
CategoryHot Air Oven
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Hot Air Oven Details

The Hot Air Oven from Patel Scientific Instruments Pvt. Ltd. is designed for precise and even heating, making it a must-have for sterilization, drying, and thermal testing tasks. It's a popular choice in laboratories, hospitals, pharmaceutical companies, and industrial environments, built to provide reliable performance, energy efficiency, and long-lasting durability.

This dry heat oven guarantees contamination-free sterilization without any moisture, making it perfect for glassware, metal instruments, powders, and non-volatile liquids.



Specifications:

  • Triple-walled Unit.
  • Inner chamber made of S.S.
  • Outer chamber made of S.S.
  • The Gap Between the two walls is filled with glass wool insulation to avoid heat loss of 65 mm.
  • Heating elements Are Made of high-grade chrome-plated plated s,teel air heaters.
  • Heaters are placed on both sides & the Bottom of the inner chamber.
  • Temperature Range 40ËšC to 250ËšC, Accuracy ±0.5 ËšC.
  • Temp. Sensor: RTD Class A type High Accuracy.
  • Air Ventilation is placed on top of the sides to remove heat gases and fumes.
  • Control Switch & pilot lamps are fitted on the front panel.
  • Supplied with S.S. Wire mesh Jali.
  • Micro Processor Auto Tune PID Digital Controller.
  • Air Circulation Motorized Blower.
  • Power Supply 220/240 V Single Phase.

Model No.

Inner dimension

(W x D x H) MM

Capacity

(Liters)

No. of

Trays

PSI-HAO45L

350 x 350 x 350

45

2

PSI-HAO90L

450 x 450 x 450

90

2

PSI-HAO120L

450 x 450 x 600

120

2

PSI-HAO220L

600 x 600 x 600

220

3

PSI-HAO340L

600 x 600 x 900

340

3

PSI-HAO450L

600 x 600 x 1200

450

4

PSI-HAO600L

700 x 700 x 1200

600

4

Documentations Provided

  • IQ OQ PQ
  • Calibration Certificate
  • User Manual of Instrument
